Maintenance and server tools (milestone 0.5)

Everything here goes through the Firebird Services API (or plain SQL), so fbadmin does not need access to the server's file system. Open the tools from the object explorer: right-click a database → Maintenance tools, a server → Server tools, or use the Maintenance block on the database dashboard and the Schedules button in the top bar.

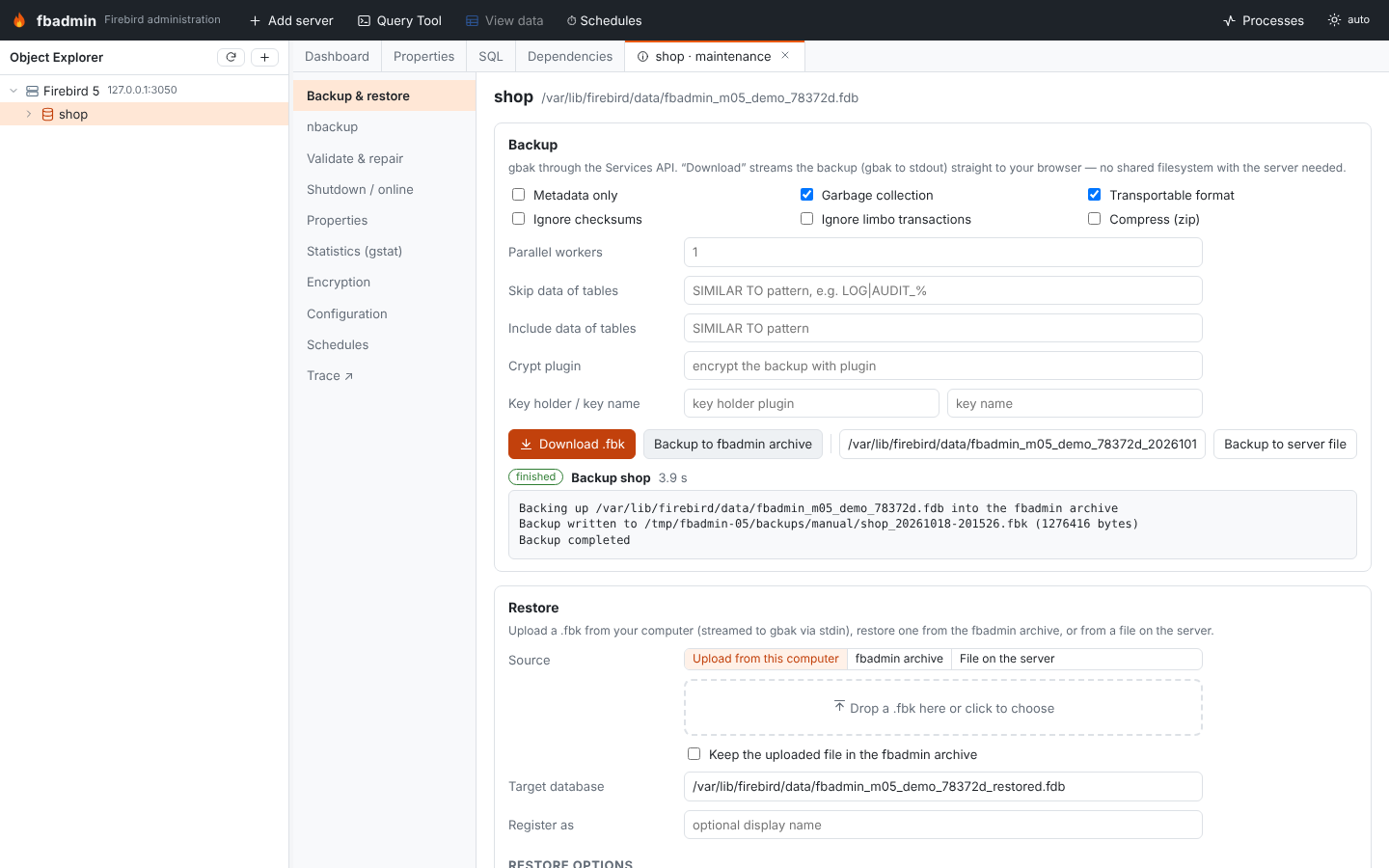

Backup and restore through the browser

Action	How it works
Download .fbk	POST …/maintenance/backup/stream starts gbak with stdout as the backup file and returns a one-time token; the browser then downloads GET /api/servers/{sid}/maintenance/downloads/{token}. Data is read with isc_info_svc_to_eof in 64 KB chunks and streamed — nothing is buffered in memory. Option errors are reported before the download starts.
Backup to fbadmin archive	Same stream, written to <data dir>/backups/manual/*.fbk as a background job.
Backup to server file	Classic gbak to a path on the Firebird server (verbose log in Processes).
Upload & restore	The browser sends the file as the raw request body; the backend spools it to <data dir>/uploads in chunks and runs gbak with stdin as the backup file, answering isc_info_svc_stdin requests from the file. Tick Keep to store the upload in the archive.
Restore from archive / server file	Restore a stored backup, or a .fbk that already sits on the server.

Backup options: metadata only, garbage collection, transportable, ignore checksums/limbo, zip (FB4+), parallel workers (FB5, isc_spb_bkp_parallel_workers), skip data (FB3+) / include data (FB4+) table patterns (SIMILAR TO), crypt plugin, key holder and key name (FB4+). Restore options: replace, page size, buffers, deactivate indices, no validity, commit per table, use all space, metadata only, read-only, parallel workers, skip/include data, crypt plugin/key, fix UNICODE_FSS data. Options that the server version does not support are disabled in the UI and rejected by the API with a clear message.

nbackup

• Incremental backups by level (isc_action_svc_nbak) to files on the server, optional direct I/O and "no database triggers". The history comes from RDB$BACKUP_HISTORY.
• Lock / unlock for file-system copies: ALTER DATABASE BEGIN BACKUP / END BACKUP. The state (normal / locked / merge) is shown from the header page and MON$BACKUP_STATE.
• Fixup (nbackup -F, isc_action_svc_nfix) — Firebird 4+ only (FB3 has no service for it).
• Restore chain (isc_action_svc_nrest): list the level 0, 1, … files in order.

Validate & repair (gfix)

• Online validation (isc_action_svc_validate, FB3+) with table/index include/exclude patterns and lock timeout; full (-v -full), read-only check (-v -n) and mend.
• Sweep (FB5: parallel workers), ICU fix (gfix -icu, isc_spb_rpr_icu).
• Limbo transactions: list (isc_info_svc_limbo_trans), commit or roll back each one.

Full validation, mend and ICU need exclusive access; fbadmin closes its own connections first.

Shutdown and online

New-style shutdown (FB 2.5+ SPB): mode multi / single / full, method force / attachments / transactions with a timeout. Bring online as normal, multi or single. Shutdown can only become more restrictive (multi → single → full); use Bring online with a less restrictive mode to step back. The current state is read from the header page, so it is visible even when the database is in full shutdown.

Database properties

Page buffers, sweep interval, forced writes, reserve space, SQL dialect and read-only are set through the Services API; linger (ALTER DATABASE SET LINGER TO / DROP LINGER) and the default character set (ALTER DATABASE SET DEFAULT CHARACTER SET) through SQL. Only changed fields are applied. Replication settings are handled by the replication feature.

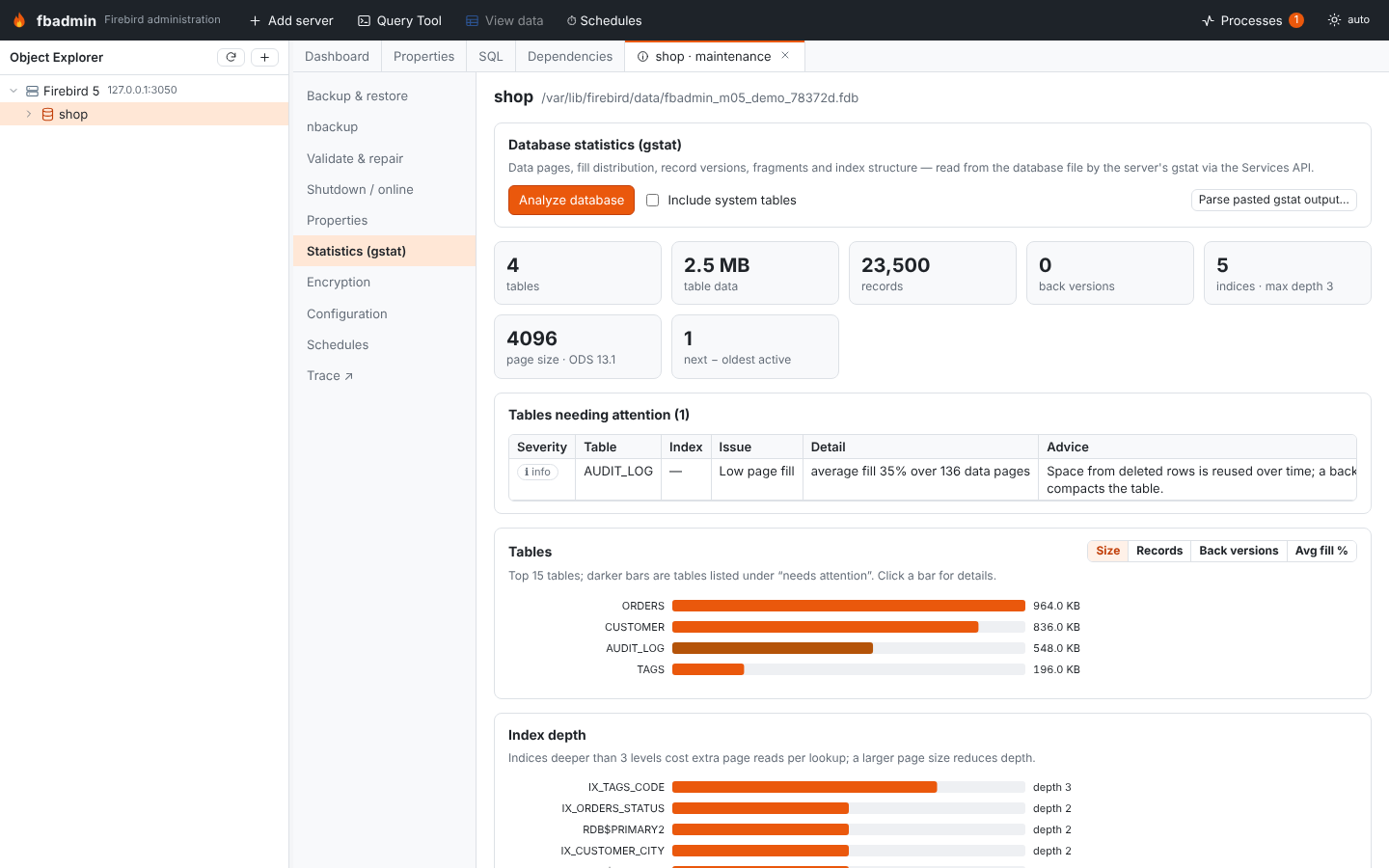

Statistics (gstat) charts

The server's gstat output (data + index pages + record versions) is parsed into JSON (fbadmin/maintenance/gstat.py, unit-tested with real FB3/4/5 outputs in backend/tests/fixtures). The UI shows summary cards, top tables by size / records / back versions / fill, index depth, fill-distribution histograms per table and index, and a tables needing attention list:

Finding	Default rule
Many record versions	back versions ≥ 20 % of records (critical ≥ 100 %), tables ≥ 100 records
Long version chains	max versions ≥ 5
Fragmented records	fragments ≥ 10 % of records
Low page fill	average fill < 50 % over ≥ 10 data pages
Deep index	depth ≥ 4
Poor selectivity	max duplicates ≥ 90 % of ≥ 1000 nodes
Transaction gap	next − oldest active > 10 000

Output of a command-line gstat -a -r can be pasted and parsed too (POST /api/servers/{sid}/maintenance/gstat/parse).

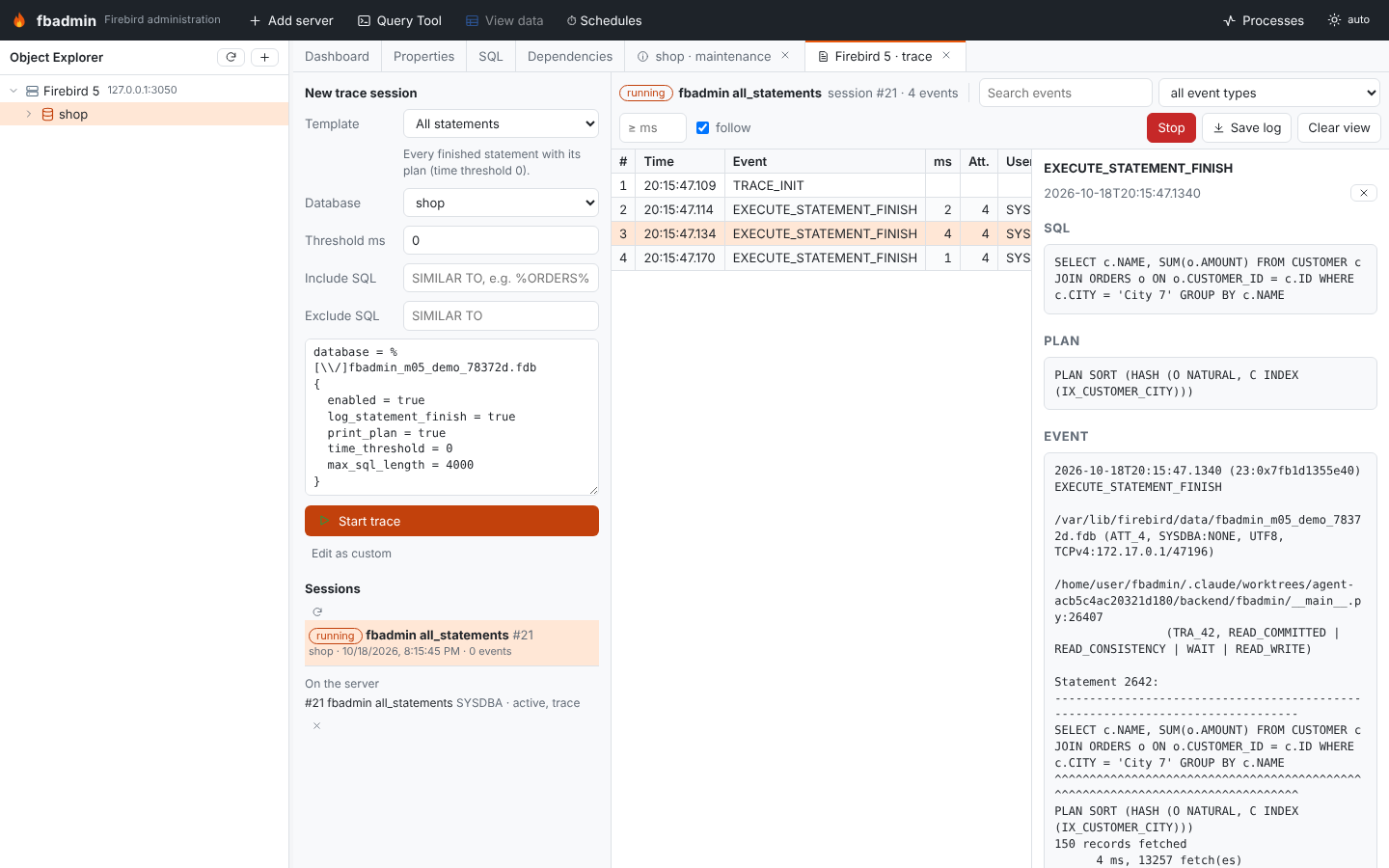

Trace API

Start a trace session from a template — slow queries (statement/procedure/function finish above a threshold, with plan and performance), all statements, errors and warnings, connections and transactions, PSQL execution — or write a custom configuration (the template config is shown and can be edited). Sessions are scoped to one database (database = %[\\/]<file name>) or all databases, with optional include/exclude SQL filters.

A background thread reads the trace output (isc_info_svc_line with a 1 s service timeout) and splits it into events (time, type, attachment, user, duration, SQL, plan). The view polls new events every second; filter by text, event type or minimum duration, follow the tail, inspect an event, stop the session, save the full log (written to <data dir>/traces/<id>.log while streaming). Sessions started elsewhere are listed (from isc_action_svc_trace_list) and can be stopped. Configuration errors are reported by the server per database when it is attached and show up as TRACE_CONFIG_ERROR events.

Encryption

ALTER DATABASE ENCRYPT WITH <plugin> [KEY <name>] / DECRYPT; progress from MON$DATABASE.MON$CRYPT_PAGE / MON$PAGES and MON$CRYPT_STATE (FB4+), polled while encryption runs. A crypt plugin must be installed on the server — without one Firebird reports "Crypt plugin … failed to load", which is shown as is.

Configuration viewer

Read-only RDB$CONFIG (Firebird 4+): effective firebird.conf / databases.conf values for the database, with default and source file. On Firebird 3 the page explains that the viewer needs Firebird 4.

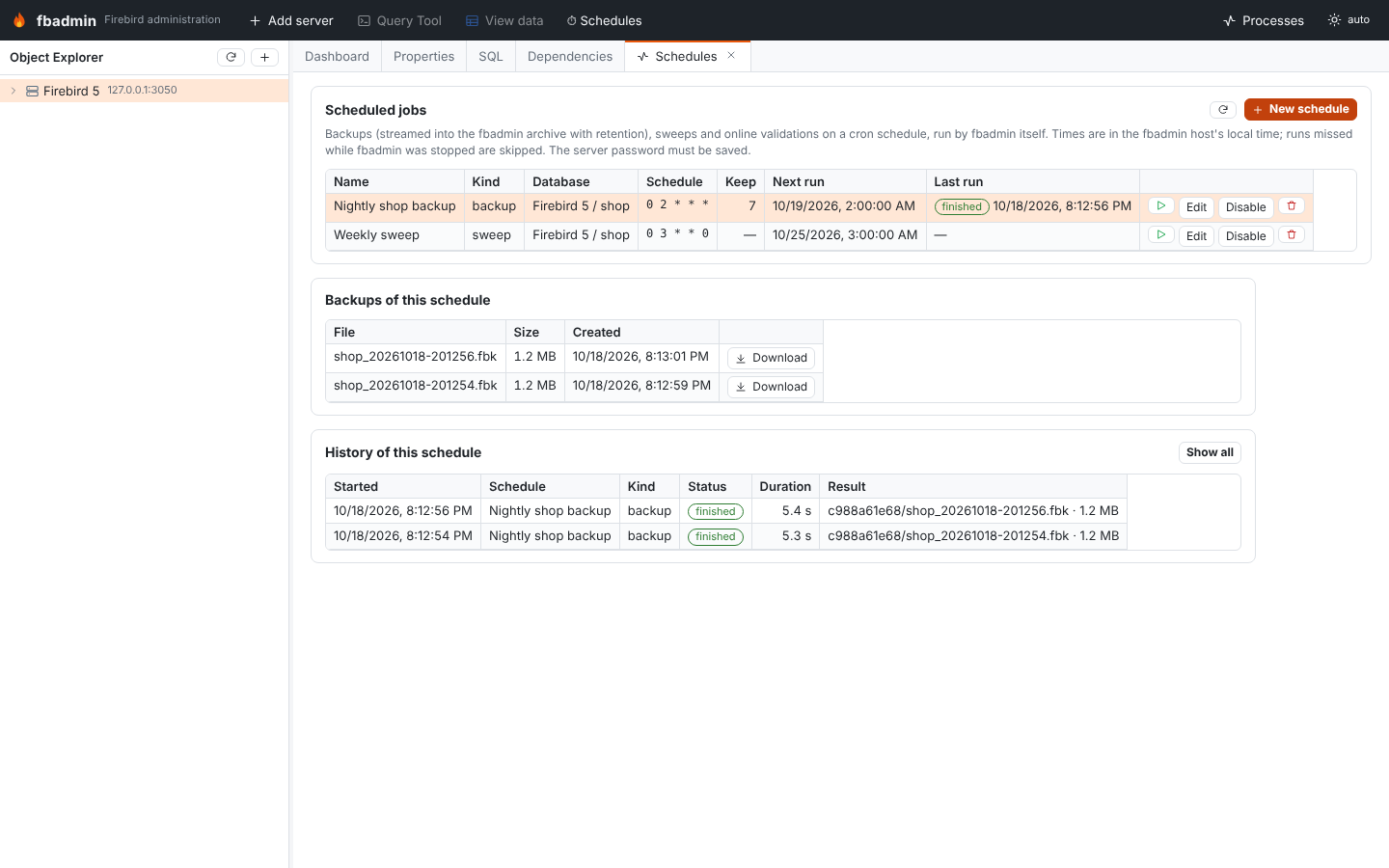

Scheduled jobs

pgAgent-like schedules for backups (streamed into <data dir>/backups/<schedule id>/ with retention: keep the last N files), sweeps and online validations.

• Standard 5-field cron expressions (minute hour day-of-month month day-of-week) with lists, ranges, steps, month/day names and @hourly/@daily/@weekly/@monthly/@yearly (own parser: fbadmin/maintenance/cron.py). The editor previews the next run times.
• Schedules and run history are stored in <data dir>/schedules.json and schedule_history.json. An in-process thread (started in the app lifespan) checks every 15 s (FBADMIN_SCHEDULER_INTERVAL) and runs due schedules as normal background jobs.
• Times use the fbadmin host's local time. Runs missed while fbadmin was not running are skipped. The server password must be saved, otherwise the run fails with "password required".
• Run now, enable/disable, edit, delete (optionally with its backup files), history, and download of each stored backup.

API overview

Endpoint	Purpose
GET /api/servers/{sid}/maintenance/capabilities	engine version and supported options
POST …/databases/{db}/maintenance/backup/stream → GET …/maintenance/downloads/{token}	streamed download
POST …/databases/{db}/maintenance/backup	backup job (target: archive or server)
POST /api/servers/{sid}/maintenance/restore	restore job from archive or server file
POST /api/servers/{sid}/maintenance/restore/upload?database_path=…	raw-body upload + restore
GET/DELETE /api/servers/{sid}/maintenance/archive, GET …/archive/download?path=	archive
POST …/maintenance/nbackup, /nbackup/lock, /nbackup/unlock, /nbackup/fixup, GET /nbackup/history	nbackup
POST /api/servers/{sid}/maintenance/nrestore	restore an nbackup chain
POST …/maintenance/validate, /sweep, /icu	gfix jobs
GET …/maintenance/limbo, POST …/limbo/{id}/{commit\|rollback\|recover}	limbo
POST …/maintenance/shutdown, /online	shutdown / online
GET/PUT …/maintenance/properties	properties
POST …/maintenance/gstat → GET /api/servers/{sid}/maintenance/gstat/{job}	parsed statistics
POST …/maintenance/encrypt, /decrypt, GET /crypt-state	encryption
GET …/maintenance/config	RDB$CONFIG
/api/servers/{sid}/trace/…	templates, preview, sessions, events, stop, download
/api/schedules/…	schedules CRUD, run, history, backups, cron preview

… = /api/servers/{sid}/databases/{db}.

Implementation notes

• fbadmin/maintenance/svc.py builds raw SPBs and runs the service query loop itself (the pure-Python driver only implements a few actions and reads line lengths as one byte).
• Tests: backend/tests/test_maintenance.py (live server: roundtrips with data verification, nbackup chain, shutdown/online, properties, limbo via a prepared 2PC transaction, validation, gstat, trace, scheduler, RDB$CONFIG, encryption error path) and test_maintenance_units.py (parser, cron, trace parsing, SPB). They pass on Firebird 3, 4 and 5; version-gated features assert the "requires Firebird N" error on older servers.
• nbackup and "backup to server file" tests leave their .nbk/.fbk files in the server's data directory (the Services API cannot delete files).
