Schema tools

Milestone 0.6 adds tools that work on a whole database. Open them from the context menu of a database in the Object Explorer (section Schema tools), from the context menu of a table, or with Search objects in the top bar.

Tool	Where	Backend
Full DDL extract	database → Extract DDL (full script)	GET /api/servers/{sid}/databases/{db}/schema/extract
Schema diff	database → Schema diff…	POST /api/schema/diff
ERD	database / Tables folder → ERD diagram, table → Show in ERD	GET …/schema/erd
Import wizard	database / Tables folder / table → Import data…	POST /api/schema/uploads, …/preview, POST …/schema/import
Export	database / table / view → Export data…	GET or POST …/schema/export
Copy data	database → Copy data to another database…, table → Copy to another database…	POST /api/schema/copy
Search objects	top bar, database → Search objects…	GET …/schema/search
Test data generator	database / table → Generate test data…	POST …/schema/generate
Unused / invalid objects	database → Unused / invalid objects	GET …/schema/report

Import, copy and the generator run as background jobs (they appear in Processes); their structured result (rows inserted, failed rows and messages) is at GET /api/schema/jobs/{id}/result.

Full DDL extract

Like isql -x, the extract writes every user object in an order that can be run into an empty database:

1. collations, domains, legacy UDFs, sequences (with SET GENERATOR to the current value), exceptions, roles
2. tables with their columns, primary and unique keys (global temporary tables keep their ON COMMIT clause); computed columns that use other objects (e.g. a stored function) are created as a typed placeholder first
3. foreign keys (separately, so circular references between tables work)
4. stubs: every stored function and procedure with its real signature and an empty body, then package headers
5. views, ordered by their dependencies (views on views)
6. the real bodies (ALTER FUNCTION / ALTER PROCEDURE) and package bodies
7. the real expression of deferred computed columns, check constraints, indices (inactive ones stay inactive), triggers (table, view, database and DDL triggers)
8. grants (privileges to users, roles, procedures, … and role membership) and comments (COMMENT ON for every object type, columns and routine parameters)

Creating PSQL modules as stubs first and filling in the bodies afterwards is the isql technique that breaks dependency cycles: procedures calling each other, a view selecting from a procedure that reads another view, a package used by a function used in a computed column, and so on.

Options: SET TERM around PSQL (otherwise statements end with ;, which fbadmin's script runner also understands), grants, comments, sequence values. Download .sql saves the script, Open in Query Tool loads it into an editor.

The extract round-trips: running it into an empty database and extracting again gives the identical script. The tests check this with backend/tests/complex_schema.sql, which contains views on views, recursive procedures, a procedure used by a view used by another procedure, a package used by a function used in a computed column, circular foreign keys, GTTs, a user collation, inactive indices and triggers, a database trigger, grants and comments.

Known limits: SQL SECURITY clauses (Firebird 4+), system privileges of roles, mappings, filters, shadows and character set defaults are not extracted. Character sets equal to the database default are omitted, as in the object DDL, so the target database should use the same default character set.

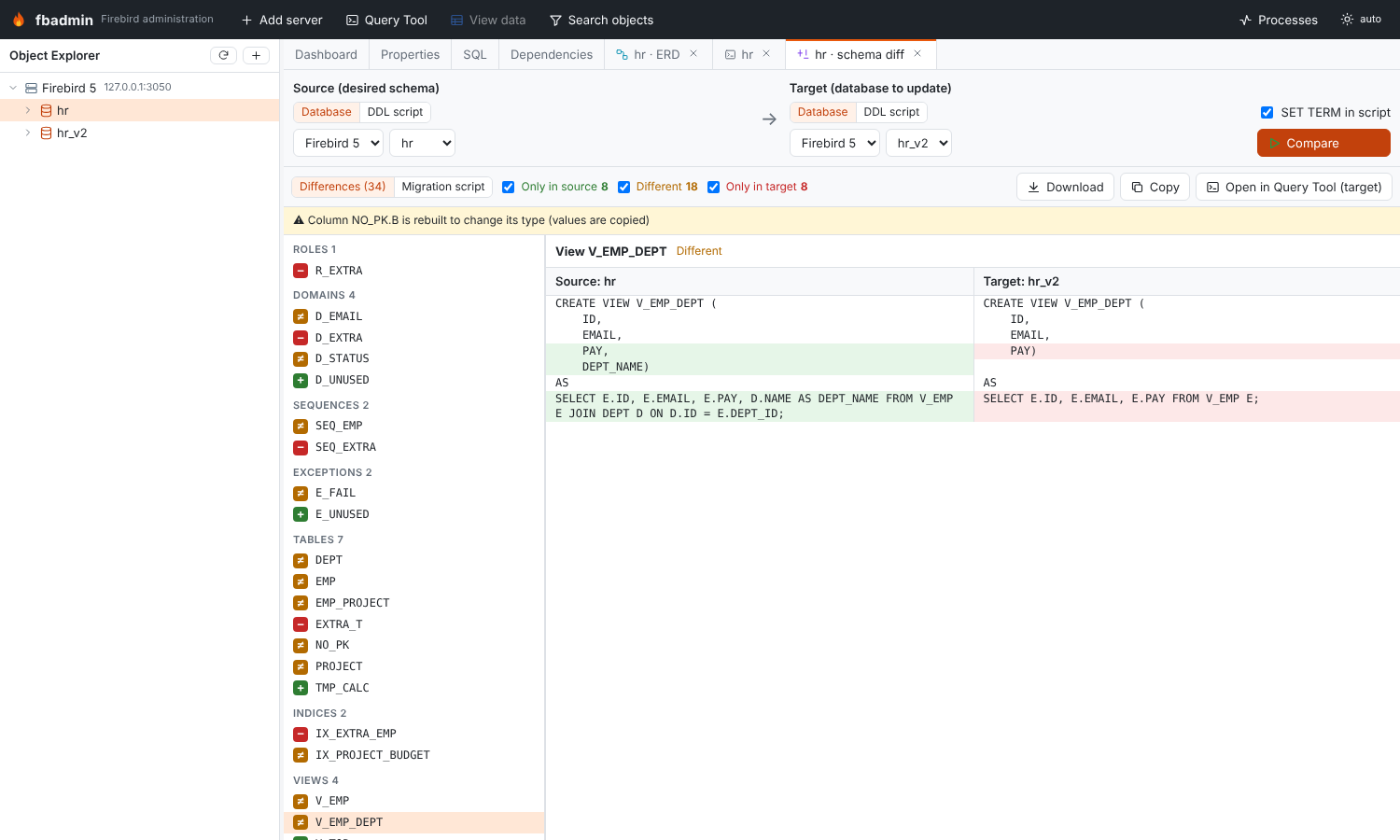

Schema diff

Compare two databases, or a database and a DDL script, and get a migration script. The semantics follow pgAdmin: source is the desired schema, target is the database to update; the script makes the target match the source. Either side can be a registered database (on any server) or a DDL script (upload a .sql file or paste it) - the script is run into a temporary database on the server of the other side (created next to that database, with the same default character set, and dropped afterwards).

The result lists the objects that are only in the source (created), only in the target (dropped) or different, grouped by type, with a side-by-side DDL diff for each. Grants are compared per object. The Migration script tab shows the script; Open in Query Tool (target) loads it into a Query Tool on the target database to review and run it.

The migration is ordered so that it can run without dependency errors:

1. revoke privileges and remove comments that only the target has
2. detach PSQL that uses anything that changes: affected triggers and package bodies are dropped, affected procedures and functions are altered to stubs with the same signature
3. drop views that must be recreated - removed views, views whose column list changes, views that depend on changed tables or routines - together with every view that depends on them; then foreign keys, indices, constraints, columns and tables
4. create or alter domains (ALTER DOMAIN … TYPE / SET DEFAULT / SET NOT NULL / ADD CHECK), sequences, exceptions (CREATE OR ALTER), tables, columns (ADD, ALTER … TYPE, SET/DROP DEFAULT, SET/DROP NOT NULL, COMPUTED BY, POSITION), keys, new routines (stubs), package headers, views, then every changed or detached routine via CREATE OR ALTER, package bodies (RECREATE PACKAGE BODY), check constraints, indices, triggers
5. drop removed routines, packages, exceptions, sequences, domains, collations and roles (last, so nothing uses them any more)
6. grant privileges and set comments - also again for objects that were recreated

Type changes Firebird cannot do in place (shorter VARCHAR, narrower numbers, incompatible types) rebuild the column: a new column is added, the values copied with UPDATE, the old column dropped and the new one renamed and moved to the old position (keys and indices of that table are recreated). Changes that would lose data (a column switching between computed and stored, a table switching between persistent and temporary) are listed as warnings at the top of the script.

The tests apply the migration in both directions between complex_schema.sql and the same schema with complex_schema_changes.sql applied, and check that the diff is empty afterwards.

Not handled: changes of a collation or of the START WITH value of a sequence, identity column options (reported as warnings), and computed columns whose expression uses a column that is dropped.

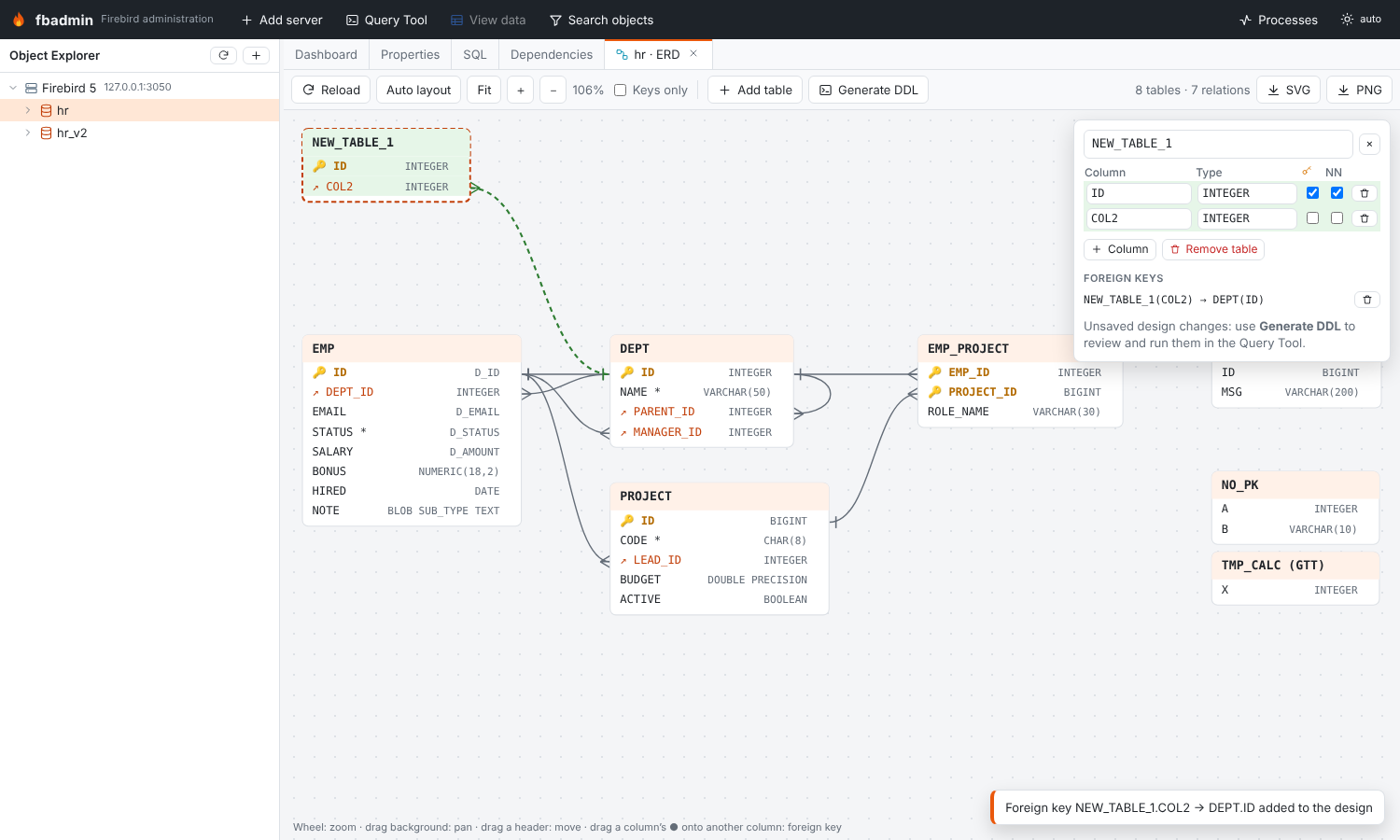

ERD

The ERD shows the tables of a database with their columns (🔑 primary key, ↗ foreign key, * not null) and the foreign keys between them (crow's foot at the referencing table). It is plain SVG:

• automatic layered layout: referenced tables to the left, referencing tables to the right, tables without relations in a grid; Auto layout re-runs it, positions you drag are remembered per database (in the browser)
• mouse wheel zooms around the pointer, dragging the background pans, dragging a table header moves the table, Fit shows everything, Keys only hides other columns
• SVG and PNG export the whole diagram (colors of the current theme)

Designing: Add table creates a table (edit its name, columns, types, primary key and NOT NULL in the side panel); existing tables can get new columns; drag the ● handle at the right of a column onto the referenced column of another table to add a foreign key (a new column takes the referenced type). Generate DDL opens the CREATE TABLE / ALTER TABLE ADD / ADD CONSTRAINT … FOREIGN KEY statements in the Query Tool, where you review and run them.

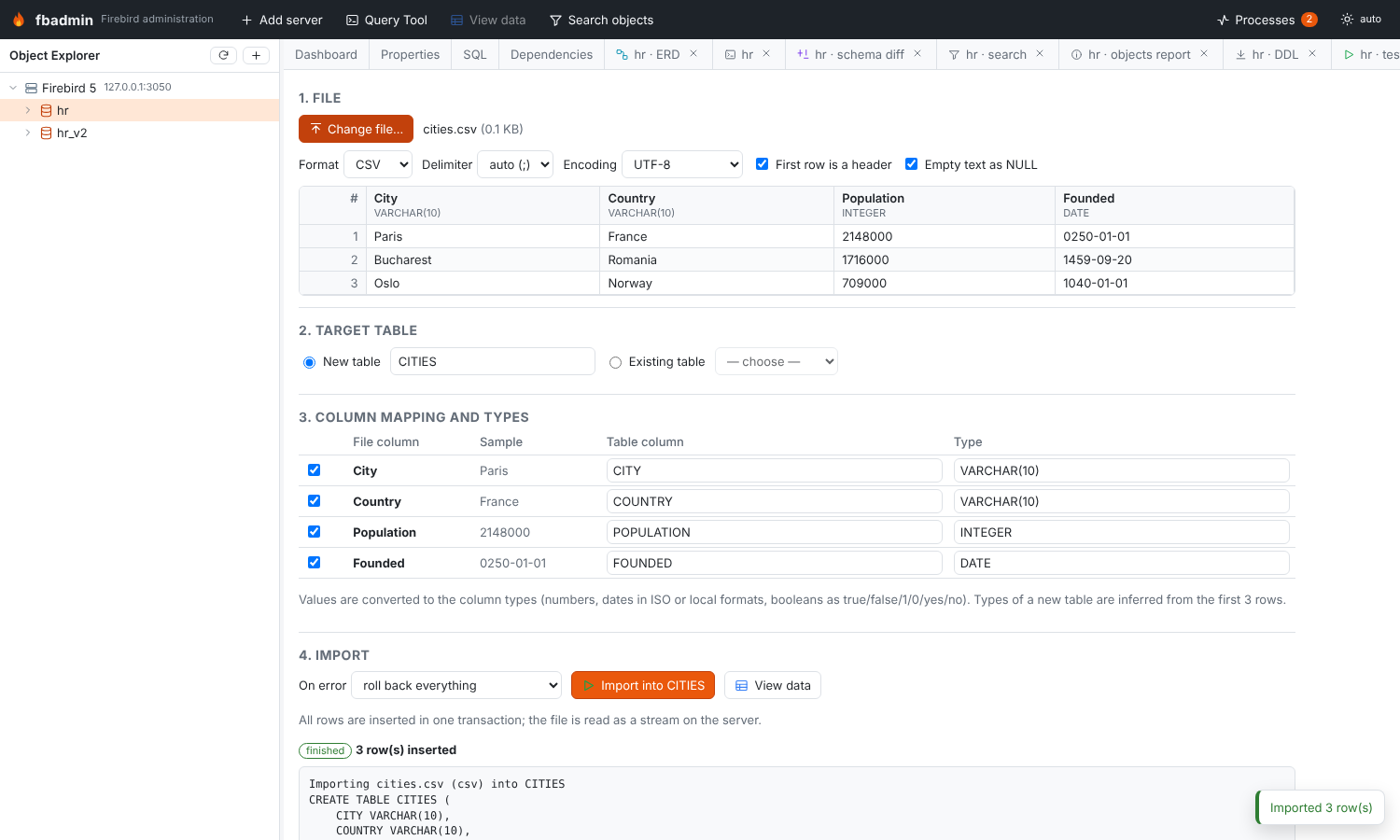

Import and export

The import wizard reads CSV, JSON and XLSX files:

1. the file is uploaded as the raw request body and streamed to disk on the server (<data dir>/uploads), so file size is not limited by memory; it is removed after the import
2. a preview shows the first rows with the detected delimiter (CSV), sheets (XLSX) and a type inferred for every column from the first 2000 rows (integer, numeric, double, date, timestamp, time, boolean, varchar with headroom, or text blob)
3. import into a new table (column names and types are editable) or append to an existing table (columns are matched by name; any file column can be mapped to any table column or skipped; optionally delete existing rows first)
4. values are converted to the column types: numbers, decimals (rounded to the scale), booleans (true/false/1/0/yes/no), dates and timestamps (ISO, dd.mm.yyyy, mm/dd/yyyy, …), JSON objects and arrays into text; empty strings can become NULL

All rows are inserted with a prepared statement in one transaction. On error the import either rolls back everything (default) or skips the bad rows and reports them (row number and message). JSON can be an array of objects, an array of arrays (first row = header), {"data": [...]} or NDJSON; large arrays are parsed incrementally.

Export writes a table, a view or the result of a query as CSV (delimiter, header), JSON (array of objects), XLSX or SQL INSERT statements (with a configurable table name). Rows are fetched in batches on a dedicated connection into a spooled temporary file (memory, then disk), the connection is closed and the file is streamed to the browser; table exports are plain links, so the browser saves them directly. XLSX uses openpyxl (write-only mode) on the server.

Copy data between databases

Copy one or more tables between two registered databases, on the same or different servers. Tables are ordered so that referenced tables are copied first. Missing tables can be created in the target (columns, primary/unique keys, the domains and user collations they use; foreign keys and indices are added after the data, triggers and checks are not copied). Rows are read with one cursor and inserted in batches, each batch committed; the job log shows TABLE: n / total rows. Identity columns are restarted after the copied values, GENERATED ALWAYS identities are written with OVERRIDING SYSTEM VALUE on Firebird 4+. Optionally the target rows are deleted first.

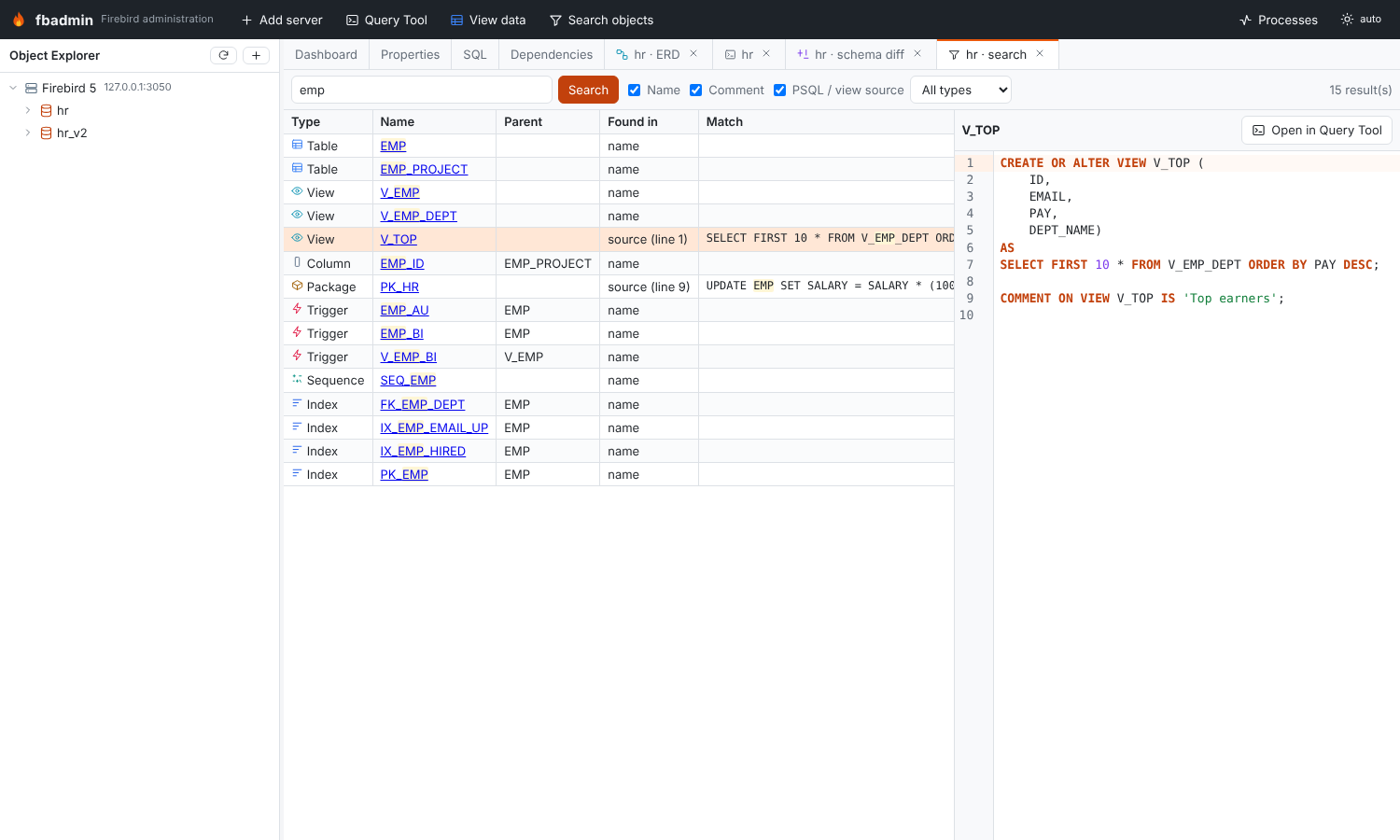

Search objects

Search a database by name, comment or PSQL / view source (procedures, functions, package headers and bodies, triggers, views, domain checks, index expressions, exception messages), optionally limited to one object type. Columns are found by name or comment. Matches in a source show the line and a snippet. Clicking a result selects the object in the Object Explorer (packaged routines select their package, columns select the column of their table or view) and shows its DDL next to the results.

Test data generator

Insert N random rows into a table, as a job. Values follow the column type (lengths, precision and scale) and domain, and:

• NOT NULL columns always get a value, nullable ones get NULL with a configurable ratio
• simple CHECK constraints of the table and the domain are honoured: comparisons (>, >=, <, <=, =), BETWEEN, IN (…) and LIKE '%@%' (e-mail addresses)
• foreign key columns get values sampled from the parent table (composite keys as tuples)
• primary and unique keys stay unique: numbers continue after the current maximum, texts get a suffix, composite keys are checked against existing rows
• column names give realistic text (names, e-mails, cities, phone numbers, codes)
• computed and identity columns are left to the server

Per column the generator can be changed to NULL, a fixed value, one of a list, a number range, a sequence or "do not set". A seed makes runs repeatable. Rows that still violate a constraint (for example a complex CHECK) are skipped and reported.

Unused or invalid objects report

• procedures, functions and triggers with RDB$VALID_BLR = 0 (need recompiling)
• invalid package bodies (for example after the package header changed) and packages without a body
• inactive indices and inactive triggers
• unused domains (no column, parameter or PSQL variable uses them)
• unused exceptions and sequences (no dependencies; identity sequences are excluded)
• tables without a primary key

Every entry links to the object in the Object Explorer.

Code

• backend: backend/fbadmin/schema/ - model.py (schema snapshot shared by extract and diff), extract.py, diff.py, dataio.py (uploads, readers, type inference and conversion, import, export), copydata.py, generator.py, search.py, report.py; API in backend/fbadmin/api/schema.py
• frontend: frontend/src/features/schema/ (one tab kind per tool, menus and the top bar button are registered in index.tsx)
• tests: backend/tests/test_schema_tools.py, schemas complex_schema.sql and complex_schema_changes.sql
